LD 3 Air Cargo Containers | AKE AKN ULD Containers

LD 3 Air Cargo Containers

A high demand Air Cargo operation requires the highest of quality while providing the necessary features to operate a leading world class facility to provide express shipping. The LD 3 Air Cargo Container by Granger Aerospace offers not only innovative, leading features, lighter tare weights, while maintaining industry leading durability that is matched by no other ULD Container on the market. Granger’s single piece polymer shell not only offers a tremendous savings in maintenance it also aides in operations efficiencies as it makes easy for identification in busy logistics terminals. The single piece polymer shell is available in custom colors to match your corporate identity or to be color coded in your operations hubs. All Granger Aerospace LD 3 Air Cargo Containers are built under Granger’s highly lauded TSO C90d authorization. Read below to learn more of how Granger Aerospace’s containers can take your operations to the next level!

LD 3 Air Cargo Container

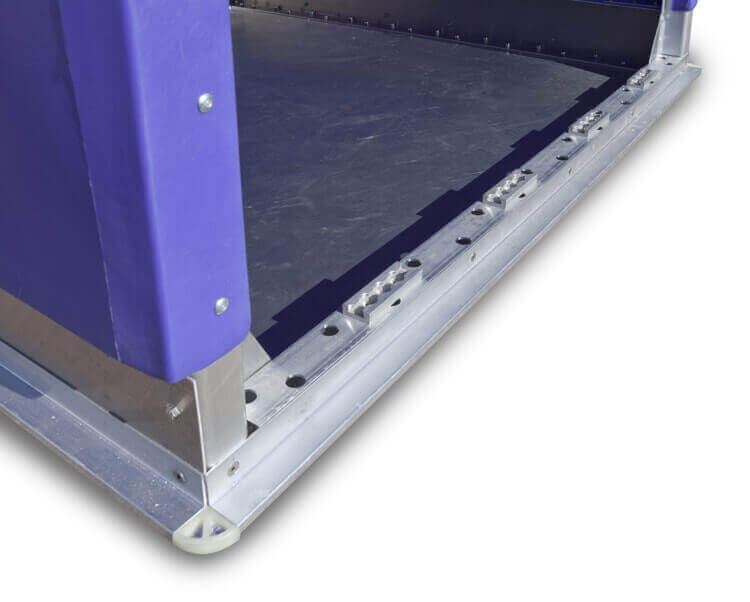

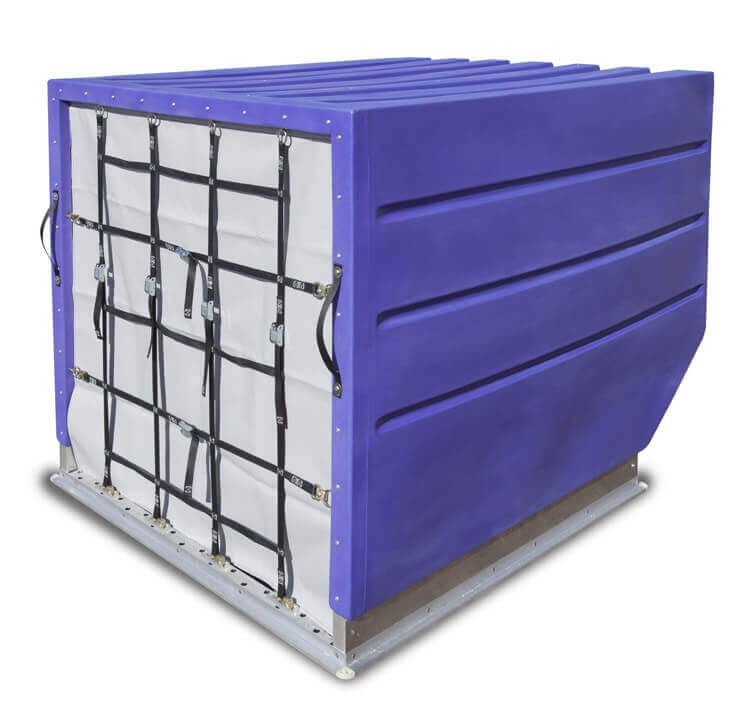

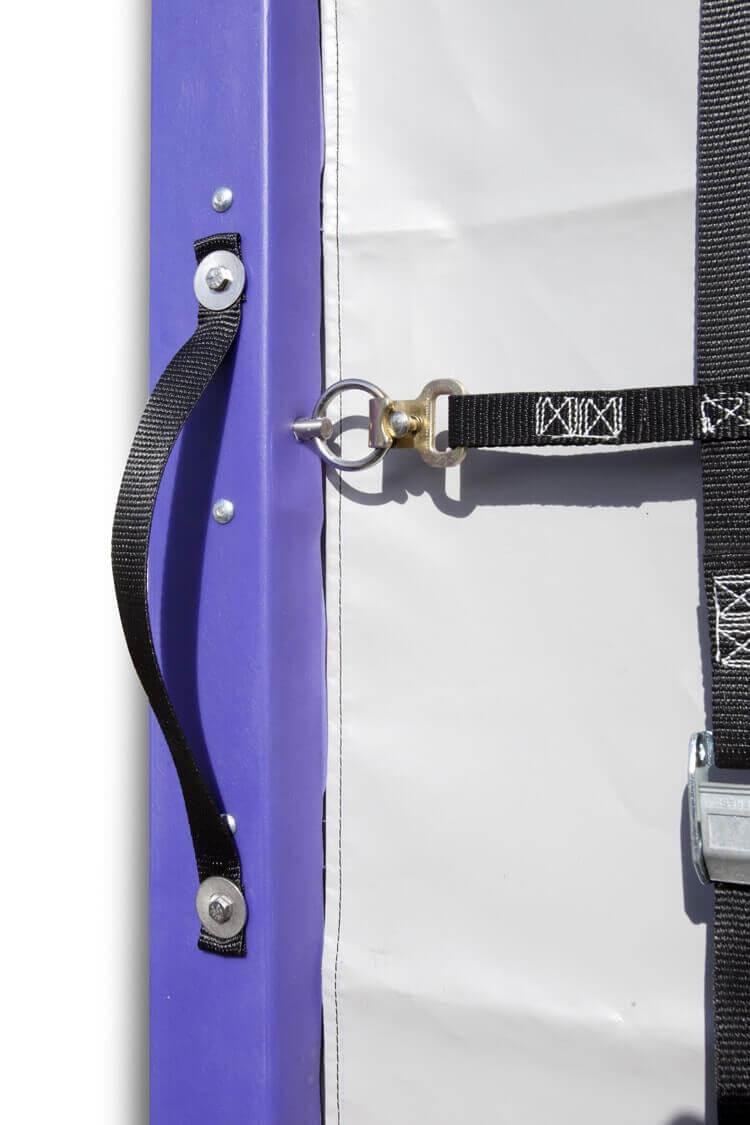

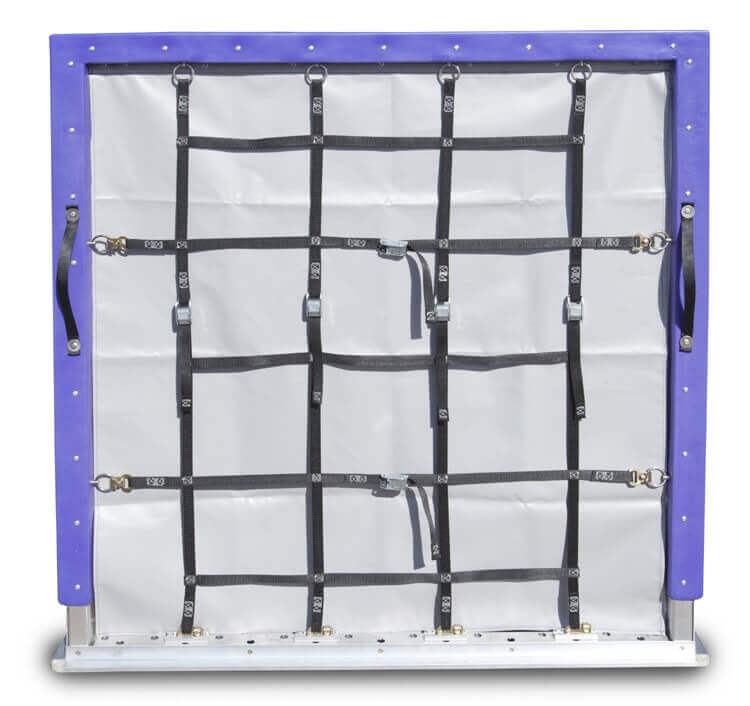

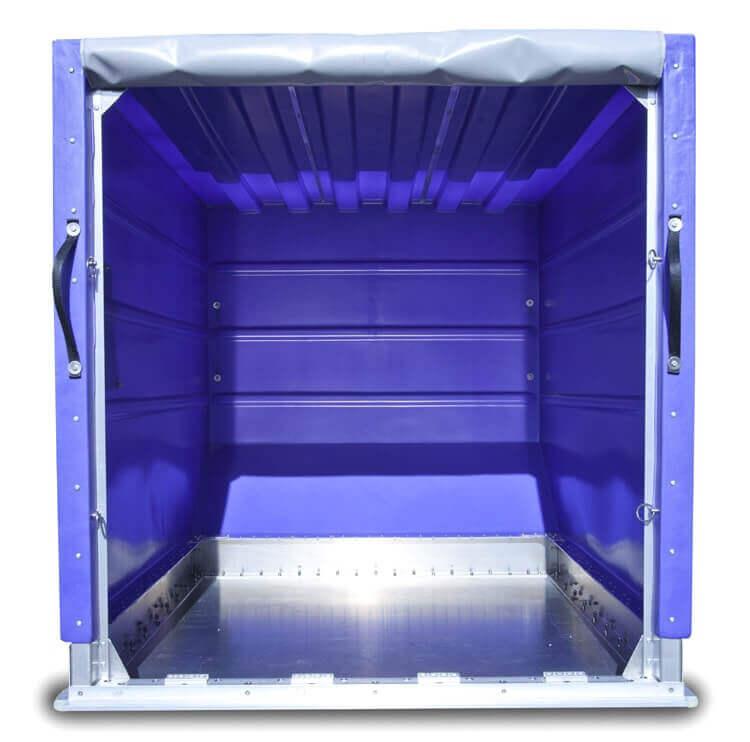

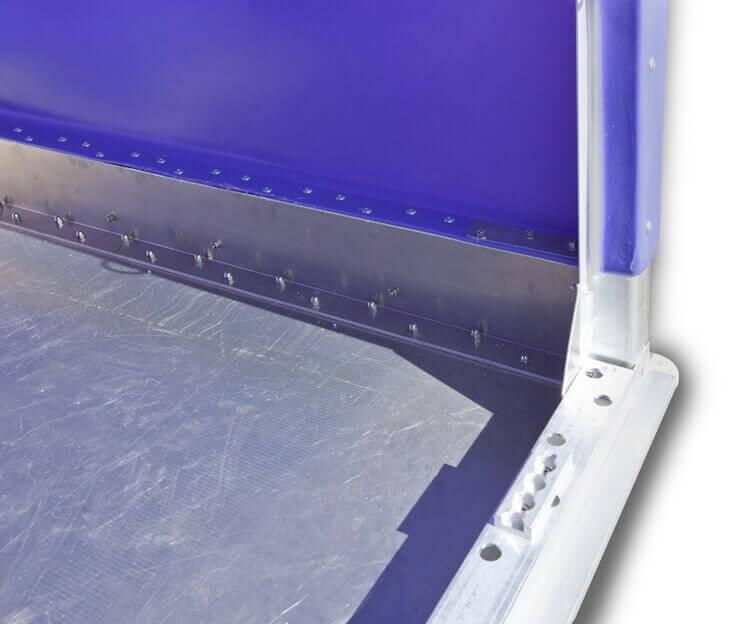

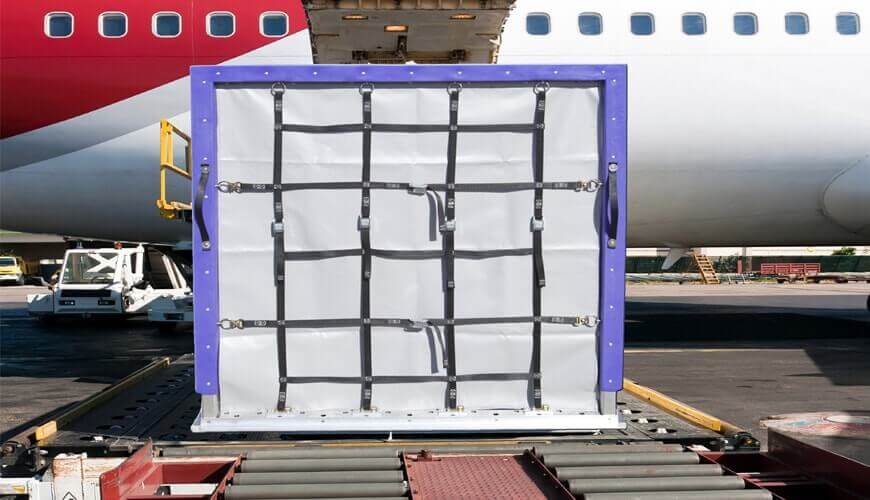

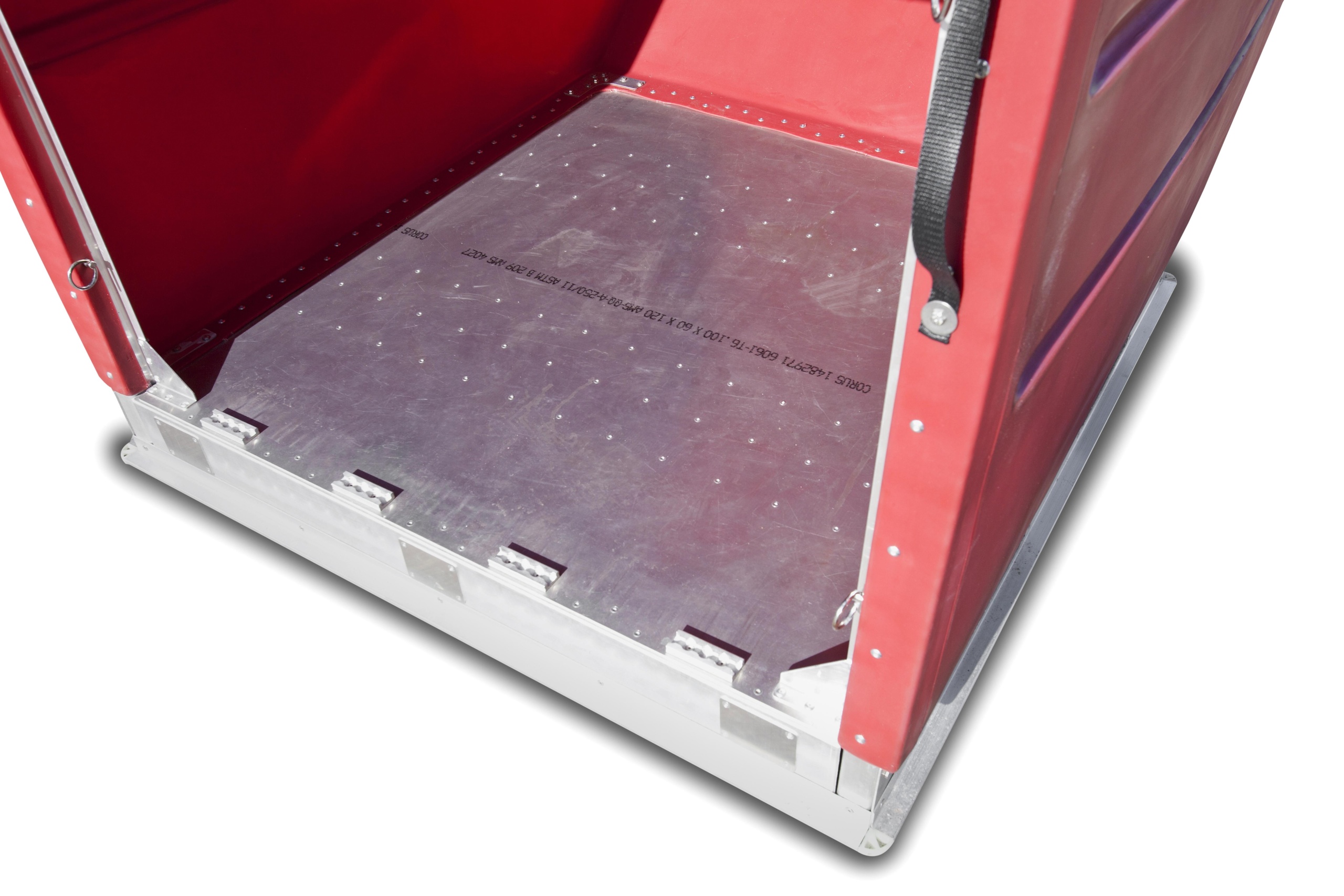

LD 3 AKE Air Cargo Container Gallery

Click any of the LD 3 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 3 AKE Technical Specifications

TSOC90d
IATALD-3/AKE
NAS SpecificationNAS3610-2K2C
Granger Aerospace P/NGA2-0103-2
Base size1534 mm x 2006 mm60.4 in x 79.0 in
Height1625 mm64 in
Roof Length2438 mm79 in
Max. gross weight2449 kg3500 lb
Internal volume5.7 cu m150 cu ft
Door Opening2298 mm x 1532 mm53.13 in. x 57.75 in
Tare weight from84.8 kg187 lb

LD 3 AKE Air Cargo Container Ultimate Load Test Video

Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA’s Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!



LD 3 AKE Dimensional Drawings

Click below to download LD 3 AKE Dimensional PDF

LD 3 AKN Dimensions

LD 3 AKE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 3 Air Cargo Container Links



LD 3 AKE / AKN Information



Click below to download LD 3 AKE Technical PDF

ld3lit-1-791x1024

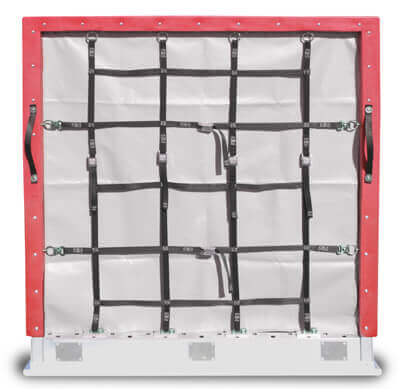

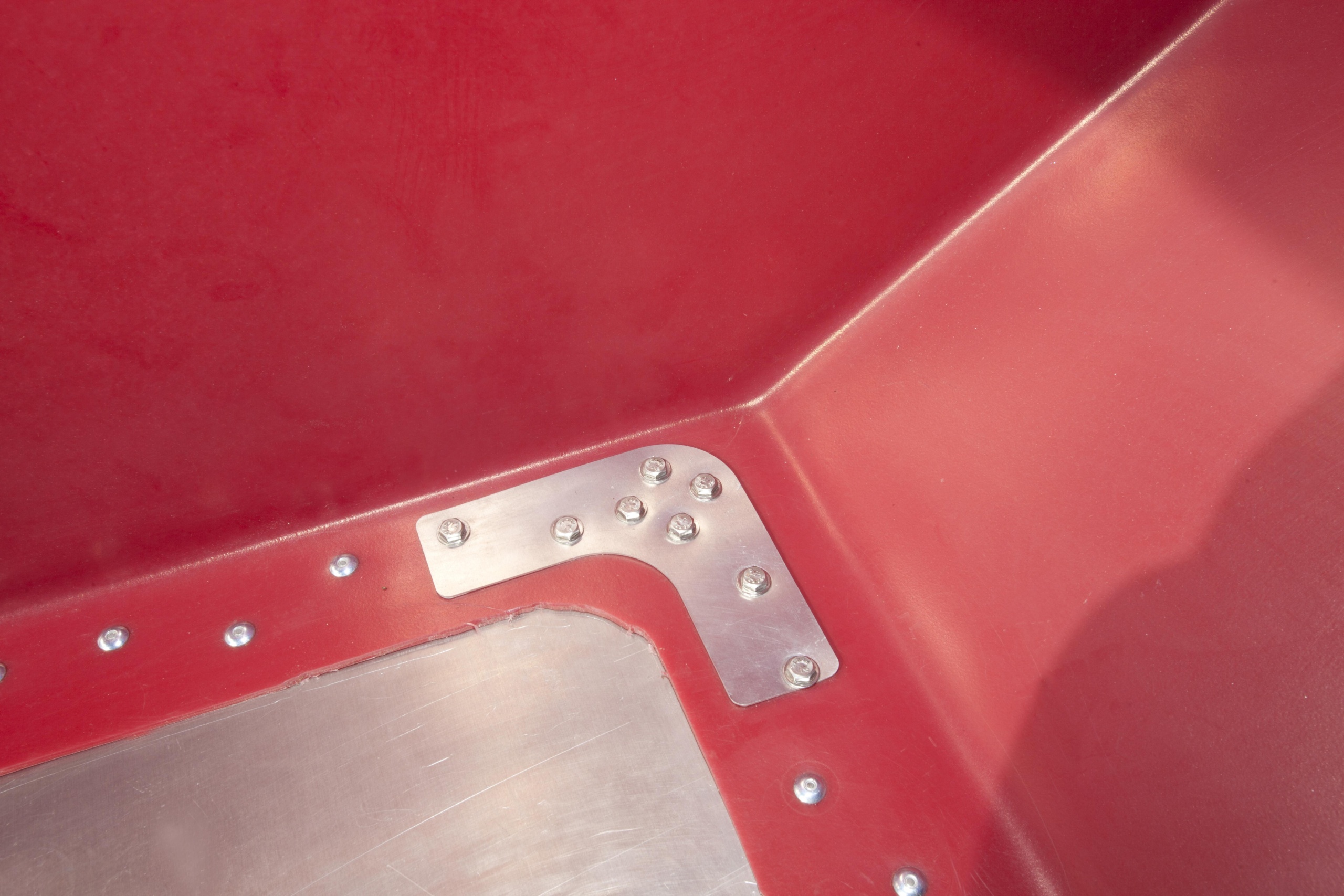

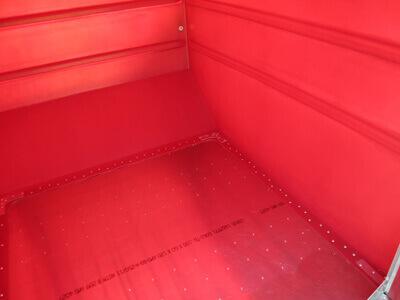

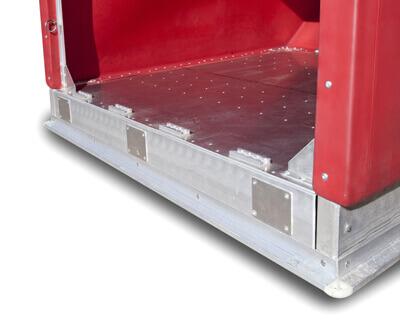

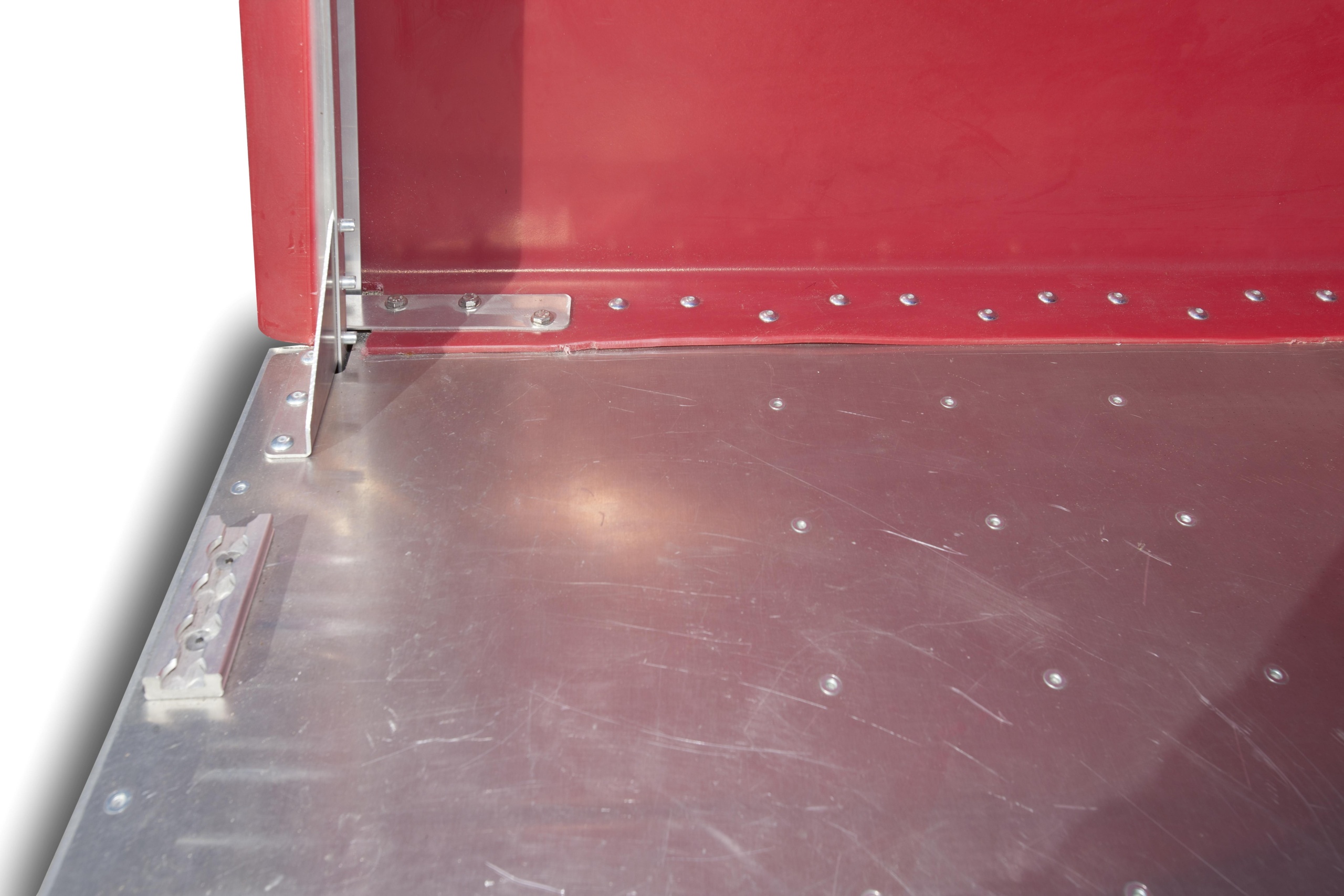

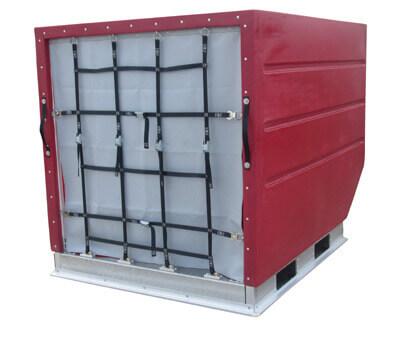

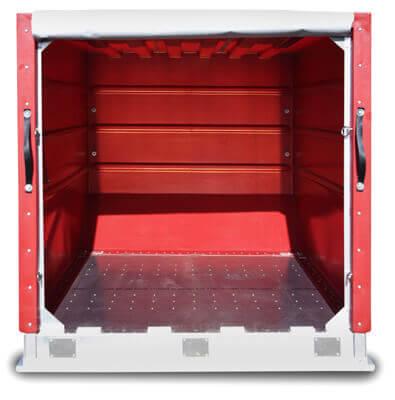

LD 3 AKN Air Cargo Container Gallery

Click any of the LD 3 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 3 AKN Technical Specifications

TSOC90d
IATALD-3 / AKN
NAS SpecificationNAS3610 (2K2C)
Granger Aerospace P/NGA2-0103-3
Base size1534 mm x 2006 mm60.4 in x 79.0 in
Height1625 mm64 in
Roof Length2438 mm79 in
Max. gross weight2449 kg3500 lb
Internal volume3.5 cu m125 cu ft.
Door Opening2298 mm x 1532 mm53.13 in. x 57.75 in
Tare weight from 118.8 kg 262 lbs.

LD 3 AKN Ultimate Load Test Video

See the forkliftable LD 3 AKN air cargo container successfully complete the FAA’s Ultimate Load Testing in the video above!

In typical fashion of Granger’s commitment to quality and excellence, Granger decided to allow it’s newly unveiled, LD-3 Air Freight Container to hang in the side load position, while loaded with 5,283 pounds of sandbags. Watch in the video above, as the air cargo container hangs for 8 days.

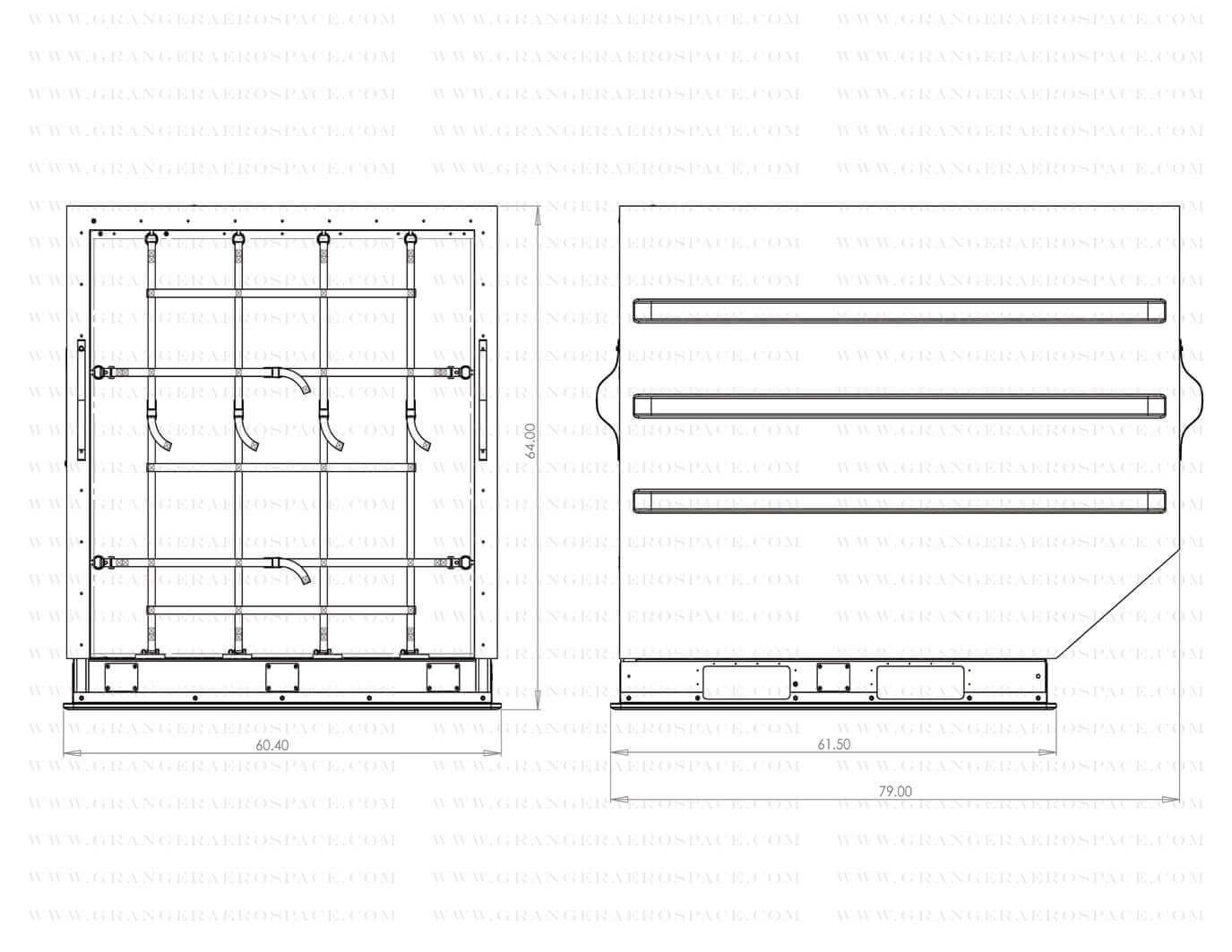

LD 3 AKN Dimensional Drawings

Click below to download LD 3 AKN Dimensional PDF

LD 3 AKN Dimensions

LD 3 AKN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 3 Air Cargo Container Links

LD 3 AKE/AKN ULD Container Information

Click below to download LD 3 AKN Technical PDF

ld3lit-1-791x1024
Request Granger Plastics Information
Fill out my online form.
Granger Plastics on Facebook
Comments Box SVG iconsUsed for the like, share, comment, and reaction icons
Cover for Granger Plastics Company
354
Granger Plastics Company

Granger Plastics Company

The Granger Plastics Company

"Solutions Beyond Expectations"

Sandsaver Beach Erosion Solution helps 5 star resort, Swahili Beach win internationally recognized World Travel Awards for Africa's Leading Beach Resort 2023.... by naturally rebuilding the resorts beach!

Congratulations Swahili Beach!After installing Sandsaver at their resort on the Indian Ocean, Swahili Beach Resort wins the World Travel Awards for Africa's Leading Beach Resort 2023 at the awards show in Dubai, UAE this week.

Congratulations to Swahili Beach!!!
... See MoreSee Less

Sandsaver Beach Erosion Solution helps 5 star resort, Swahili Beach win internationally recognized World Travel Awards for Africas Leading Beach Resort 2023.... by naturally rebuilding the resorts beach!

Congratulations Swahili Beach!
Load more
Granger Plastics on Twitter
Load More
Granger Plastics On Instagram
May the Fourth Be With You... Protecting you from Mother Nature's FORCE!

#tornado #tornadoshelters #plastics #grangeriss #stormshelters #rotomolding #rotationalmolding #grangerplastics #grangeriss #starwars #darthvader #stormtrooper #staysafeoutthere
In case you needed a "sign" to stay out of Jail... Here it is!

#rotomolding #laundrycarts #materialhandling #laundry #commerciallaundry #uniforms #towels #jail #CountyJail #Prison #plastics #inmates #getoutofjailfreecard
One of the video clips from the Granger ISS debris impact test at Texas Tech University's Wind Lab performing the FEMA 320 and FEMA 361 debris impact test.... If you're considering purchasing ANY tornado shelter or storm shelter... Ask to see the debris impact test video... If they don't or won't show you, run away and find a reputable supplier who will!!! #tornado #tornadoshelters #StormShelters #GrangerISS #plastics #rotomolding #rotationalmolding #grangerplastics #plastics #weather #environment #emergency #FEMA #disaster #prepared #survival #Ohio #Texas #texastech
The Sandsaver continues to produce amazing results after only 6 weeks- over 20,000 cubic yards of sand accumulated and over 100' of increased width profile in some areas already!! #beacherosionSolution #beacherosion #beaches #plastics #rotomoulding #rotationalmolding #environment #beachconservation #stopbeacherosion #reversebeacherosion #savethebeaches #Sandsaver #grangerplastics #Ohio #Africa #Kenya #UnitedStates
See the Sandsaver Beach Erosion solution get installed and produce significant positive results at the beautiful @swahilibeach resort in Diani Beach Kenya in just 2 weeks! Video link in bio!

#Beach #beacherosionSolution #beaches #beacherosion #stopbeacherosion #dredgingalternatives #reversebeacherosion #Kenya #Africa #environment #tourism #travel #seetheworld #luxuryresort #resorts #dianibeachkenya #dianibeach #Sandsaver #grangerplastics #rotomoulding
Granger ISS Tornado Shelter installed at an incredibly beautiful horse farm in Southern Pines, North Carolina.

One of the rotomolding industry's best innovations, ever.
#GrangerISS #tornadoshelters #StormShelter #tornado #tornadowarning #weather #plastics #rotomolding #rotationalmolding #grangerplastics #rotationalmoldingdotcom #Granger #NorthCarolina #Ohio

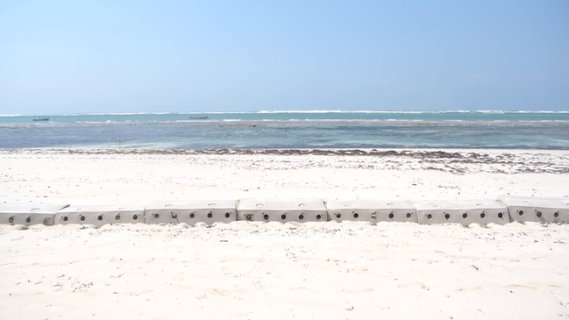

A photo of the tide coming in at the Sandsaver installation location at Diani Beach in Kenya... So incredibly beautiful... #Beach #BeachRenourishment #beacherosionSolution #Sandsaver #rotomolding #rotationalmolding #Granger Plastics #Africa #Kenya #dianibeach
