Air Cargo Containers / ULD Containers

Air Cargo Containers, or more technically known as ULD Containers or as a Unit Load Device, is a regulated pallet or container that is used to load passenger freight, cargo, parcels, mail and more on wide-body aircraft and specific models of narrow-body aircraft. The use of ULD Containers allows for larger volums of cargo to be bundled into a single unit. Since this reduces the potential number of units to load, it aides in increasing operations efficiencies in busy operations such as freight terminals, airports, tarmacs and more! The increased operations efficiencies assist in preventing flight delays, speeding up air worthiness checks and saves ground crews precious time.

Since the inception of Granger Plastics, the rotomolding company has been heavily involved in a wide number of aspects of the aerospace industry, including producing over 10,000 custom air cargo containers for a major international parcel delivery carrier, who insists that the Granger Unit Load Devices provide them the lowest total cost of ownership amongst comparable ULD containers. This proven history pushed Granger Industries into launching Granger Aerospace Products. Granger Aerospace now offers lines of LD 2, LD 3 and LD 8 ULD Containers. The LD 2 and LD 8 Air Cargo Containers are built to AS 1677 NAS Specifications, while the LD 3 ULDs are built to the FAA’s TSO C90d certification.

Learn more about the Granger Aerospace ULD Containers below:

Air Cargo Container ULD Container

LD 2 Air Cargo Containers

LD 2 Containers are an integral part of the airline, small parcel and aerospace industry. Commonly known by their IATA ULD Codes of DPE and DPN, the LD 2 Air cargo containers are half-width lower hold containers that feature one angled side. LD 2 Containers are suitable for use on a variety of wide-body Boeing aircraft including 747’s, 767’s, 777’s and 787 lower holds.

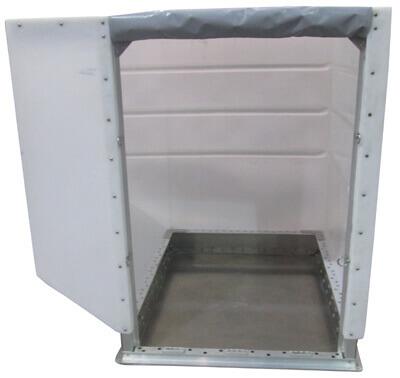

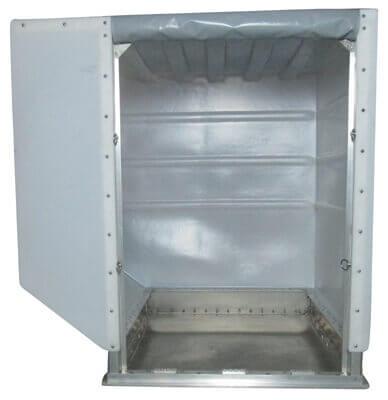

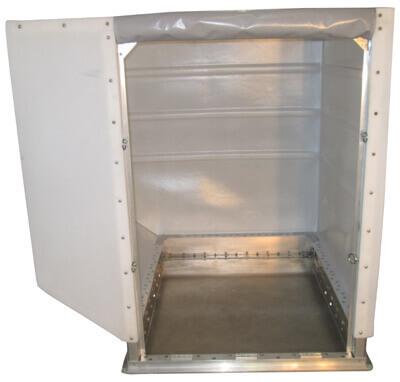

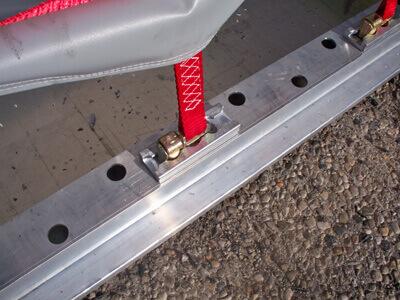

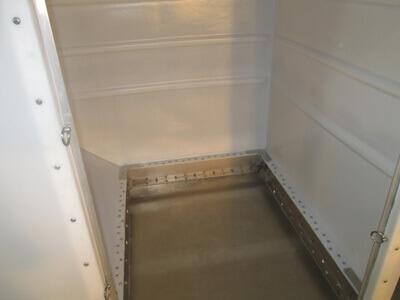

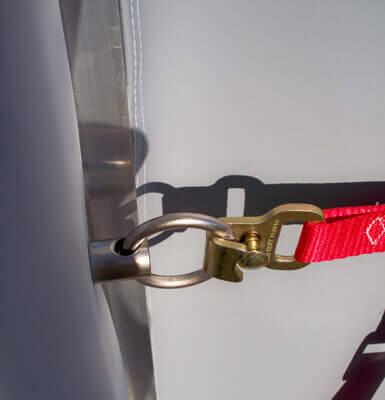

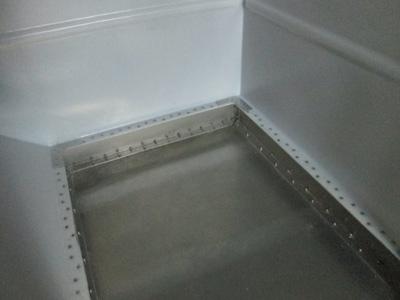

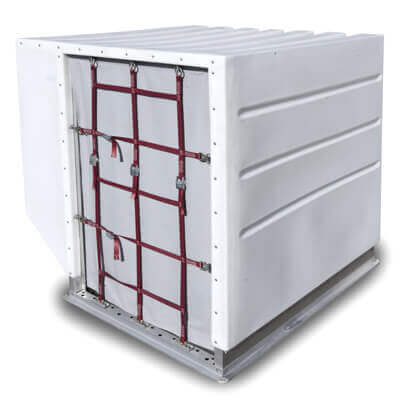

LD 2 DPE Air Cargo Container Gallery

LD 2 DPE Technical Specifications

TSON/A
IATALD-2 / DPE
NAS SpecificationAS 1677
Granger Aerospace P/NGA2-0102-2
Base size1534 mm x 1562 mm60.4 in x 61.5 in
Height1625 mm64 in
Roof Length1562 mm61.5 in
Max. gross weight1224 kg2700 lb
Internal volume3.5 cu m123 cu ft
External volume3.65 cu m129 cu ft
Door Opening1010 mm x 1480 mm39.75 in. x 58.27 in
Tare weight from72.1 kg159 lb

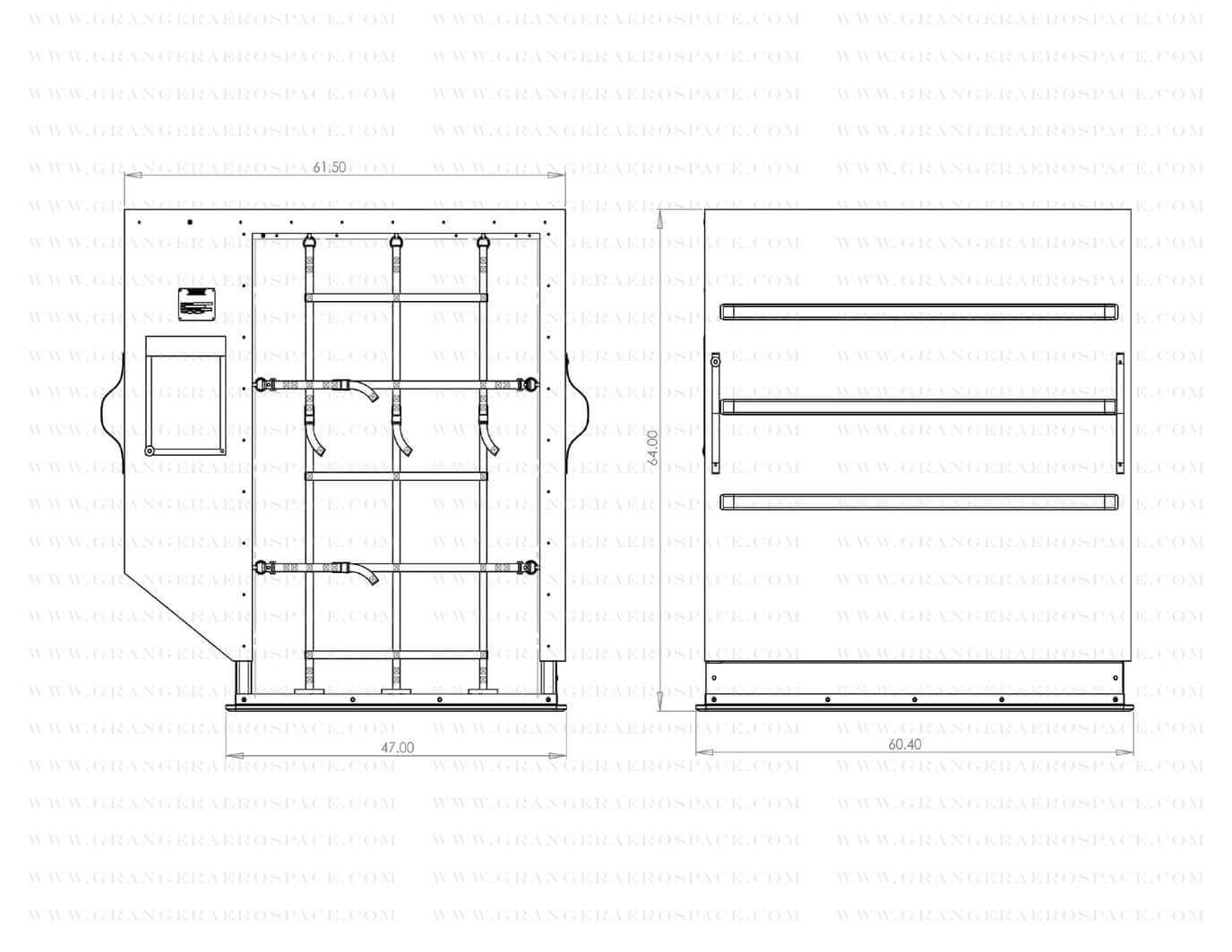

LD 2 DPE Dimensional Drawings

Click below to download LD 2 DPE Dimensional PDF

LD 2 DPE Dimensions

LD 2 DPE Features

    • Granger Aerospace Products Air Cargo Containers are the only cargo containers manufactured from a combination of aluminum and durable LLDPE.
    • The LD-2 Body is weld-able.
    • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
    • Granger Aerospace Products cargo containers are robust.
    • No aluminum body panels to patch.
    • No aluminum body frames to replace.
    • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
    • Enhanced Threshold.
    • Fewer fasteners to replace.
    • Unique design allows for faster repairs.
    • Less spare parts to keep in stock.
    • Granger Aerospace Products offers alternative solutions for your ULD needs.
    • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
    • It’s our goal to offer more choices to our customers.
    • Through or focus on technology and research, we are continually making improvements to our design.
    • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

LD 2 DPE Air Cargo Container Links

LD 2 DPE Information

Click below to download LD 2 DPE Technical PDF

LD 2 DPE DPN Information

LD 2 DPN Air Cargo Container Gallery

Click any of the LD 2 DPN Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 2 DPN Technical Specifications

TSON/A
IATALD-2 / DPN
NAS SpecificationAS 1677
Granger Aerospace P/N GA2-0102-3
Base size1534 mm x 1562 mm60.4 in x 61.5 in
Height1625 mm64 in
Roof Length1562 mm61.5 in
Max. gross weight1224 kg2700 lb
Internal volume3.2 cu m114 cu ft
External volume3.65 cu m129 cu ft
Door Opening1010 mm x 1480 mm39.75 in. x 58.27 in
Tare weight from72.1 kg230 lb

LD 2 DPN Dimensional Drawings

Click below to download LD 2 DPE Dimensional PDF

LD 2 DPN Air Cargo Container Dimensions

LD 2 DPN Features

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 2 Air Cargo Container Links

LD 2 DPN Information

Click below to download LD 2 DPN Technical PDF

LD 2 DPE DPN Information

LD 3 Air Cargo Containers

LD 3 Air Cargo Container

LD 3 AKE Air Cargo Containers

A high demand Air Cargo operation requires the highest of quality while providing the necessary features to operate a leading world class facility to provide express shipping. The LD 3 Air Cargo Containers by Granger Aerospace offers not only innovative, leading features, lighter tare weights, while maintaining industry leading durability that is matched by no other ULD Container on the market. Granger’s single piece polymer shell not only offers a tremendous savings in maintenance it also aides in operations efficiencies as it makes easy for identification in busy logistics terminals. The single piece polymer shell is available in custom colors to match your corporate identity or to be color coded in your operations hubs. All Granger Aerospace LD 3 containers are built under Granger’s highly lauded TSO C90d authorization. Read below to learn more of how Granger Aerospace’s containers can take your operations to the next level!

LD 3 AKE Air Cargo Container Gallery

Click any of the LD 3 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 3 AKE Technical Specifications

TSOC90d
IATALD-3/AKE
NAS SpecificationNAS3610-2K2C
Granger Aerospace P/NGA2-0103-2
Base size1534 mm x 2006 mm60.4 in x 79.0 in
Height1625 mm64 in
Roof Length2438 mm79 in
Max. gross weight2449 kg3500 lb
Internal volume5.7 cu m150 cu ft
Door Opening2298 mm x 1532 mm53.13 in. x 57.75 in
Tare weight from84.8 kg187 lb

LD 3 AKE Air Cargo Container Ultimate Load Test Video

Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA’s Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!



LD 3 AKE Dimensional Drawings

Click below to download LD 3 AKE Dimensional PDF

LD 3 AKN Dimensions

LD 3 AKE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 3 Air Cargo Container Links



LD 3 AKE / AKN Information



Click below to download LD 3 AKE Technical PDF

ld3lit-1-791x1024

LD 3 AKN Air Cargo Container Gallery

Click any of the LD 3 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 3 AKN Technical Specifications

TSOC90d
IATALD-3 / AKN
NAS SpecificationNAS3610 (2K2C)
Granger Aerospace P/NGA2-0103-3
Base size1534 mm x 2006 mm60.4 in x 79.0 in
Height1625 mm64 in
Roof Length2438 mm79 in
Max. gross weight2449 kg3500 lb
Internal volume3.5 cu m125 cu ft.
Door Opening2298 mm x 1532 mm53.13 in. x 57.75 in
Tare weight from 118.8 kg 262 lbs.

LD 3 AKN Ultimate Load Test Video

See the forkliftable LD 3 AKN air cargo container successfully complete the FAA’s Ultimate Load Testing in the video above!

In typical fashion of Granger’s commitment to quality and excellence, Granger decided to allow it’s newly unveiled, LD-3 Air Freight Container to hang in the side load position, while loaded with 5,283 pounds of sandbags. Watch in the video above, as the air cargo container hangs for 8 days.

LD 3 AKN Dimensional Drawings

Click below to download LD 3 AKN Dimensional PDF

LD 3 AKN Dimensions

LD 3 AKN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 3 Air Cargo Container Links

LD 3 AKE/AKN ULD Container Information

Click below to download LD 3 AKN Technical PDF

ld3lit-1-791x1024

LD 8 Air Cargo Containers

LD 8 Air Cargo Container ULD Container

LD 8 ULD Containers are full-width, lower deck ULD Containers, commonly referred to by their IATA ULD Codes of DQF and DQN. The containers are often used for large or heavy cargo, as the LD 8 Air Cargo Containers feature a maximum gross weight of 5,400 pounds. The lower-deck ULD Container is suitable for use in Boeing Wide-body 767’s and 787’s. Review the information below to see how the Granger Aerospace LD 8 Air Cargo Container can provide you the lowest total cost of ownership amongst comparable ULD Containers.

LD 8 DQF Air Cargo Container Gallery

Click any of the LD 8 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 8 DQF Technical Specifications

TSON/A
IATALD-8 / DQF
NAS SpecificationAS 1677
Granger Aerospace P/NGA2-0108-2
Base size2438 mm x 1534 mm96.0 in x 60.4 in
Height1625 mm64 in
Roof Length3175 mm125 in
Max. gross weight2449 kg5400 lb
Internal volume6.9 cu m244 cu. ft
External volume7.5 cu m265 cu ft
Door Opening2254 mm x 1462 mm88.75 in x 57.56 in
Tare weight from 116.6 kg257 lb

LD 8 DQF Dimensional Drawings

Click below to download LD 8 DQF Dimensional PDF

LD 8 Dimensional DQF

LD 8 DQF Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 8 Air Cargo Container Links



LD 8 DQF / DQN Information

Click below to download LD 8 DQN Technical PDF

LD 8 DQF DQN Information

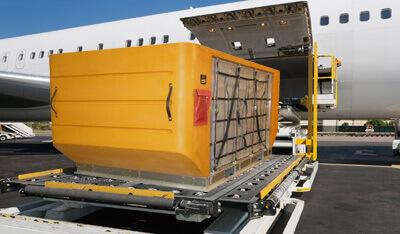

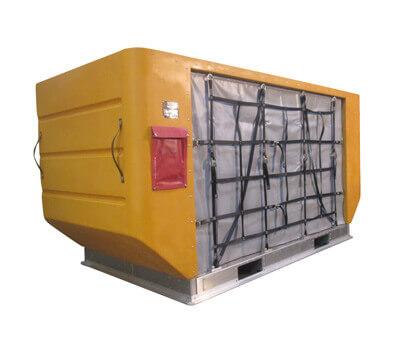

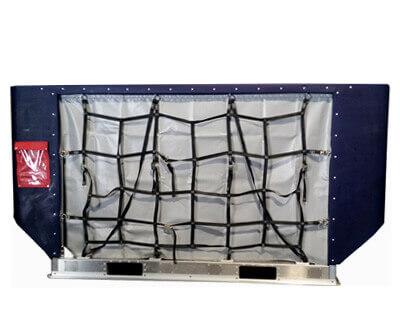

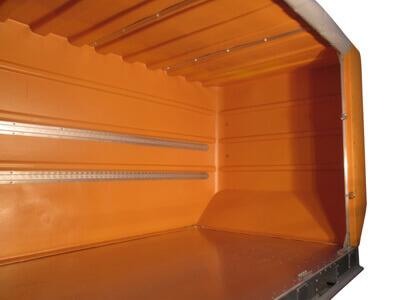

LD 8 DQN Air Cargo Container Gallery

LD 8 DQN Technical Specifications

TSON/A
IATALD-8 / DQN
NAS SpecificationAS 1677
Granger Aerospace P/NGA2-0108-3
Base size2438 mm x 1534 mm96.0 in x 60.4 in
Height1625 mm64 in
Roof Length3175 mm125 in
Max. gross weight2449 kg5400 lb
Internal volume6.4 cu m224.5 cu. ft
External volume7.5 cu m265 cu ft
Door Opening2254 mm x 1462 mm88.75 in x 57.56 in
Tare weight from169.6 kg374 lb

LD 8 DQN Dimensional Drawings

Click below to download LD 8 DQN Dimensional PDF

LD 8 DQN Dimensions

LD 8 DQN Air Cargo Container Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 8 DQN / DQF Information

Click below to download LD 8 DQN Technical PDF

LD 8 DQF DQN Information
Request Granger Plastics Information
Fill out my online form.
Granger Plastics on Facebook
Comments Box SVG iconsUsed for the like, share, comment, and reaction icons
Cover for Granger Plastics Company
Page likes: 396

Granger Plastics Company

(opens in a new tab)

The Granger Plastics Company

"Solutions Beyond Expectations"

Wall thickness plays a major role in rotational molding performance — but there’s a lot more to it than simply specifying a number on a drawing.

We just published a new technical article covering nominal wall thickness, minimum wall requirements, geometry, material distribution and heavy-wall applications.

Read the latest article at **RotationalMolding DOT com**.

#RotationalMolding #Rotomolding #PlasticsManufacturing
...

Wall thickness plays
Granger Plastics on Twitter
Granger Plastics On Instagram
A small geometry decision can turn into a BIG tooling decision.

Undercuts in rotational molding can affect how a mold opens, how a finished part releases, where the parting line belongs, and whether removable or multi-piece tooling is required.

Our newest RotationalMolding.com technical guide takes a deeper look at:

🔹 Shallow vs. restrictive undercuts
🔹 Polyethylene flexibility and shrinkage
🔹 Draft and release direction
🔹 Parting-line placement
🔹 Multi-piece molds
🔹 Removable tooling
🔹 Designing for easier production

Another addition to our growing rotational molding design resource library.

Visit RotationalMolding.com and look for:

“Rotational Molding Undercuts: Design Guidelines for Part Release & Mold Construction”

#RotationalMolding #Rotomolding #PlasticManufacturing #PlasticDesign #Engineering #Manufacturing #ProductDesign #CustomMolding #Plastics

1 0
💪 **STRONGER PARTS START WITH SMARTER DESIGN!**

When it comes to rotational molding, adding more plastic isn't always the answer.

Strategically designed **ribs, gussets, kiss-offs, and structural reinforcement features** can significantly improve the strength, stiffness, and performance of rotomolded plastic parts — without simply increasing wall thickness.

At **The Granger Plastics Company**, we know that successful rotational molding starts long before production. It begins with thoughtful engineering, smart material selection, and design for manufacturability.

🔧 Our latest technical article explores how ribs, gussets, and molded geometry can help engineers and product designers create stronger, more efficient rotationally molded products.

📖 **Rotational Molding Ribs, Gussets & Structural Reinforcement: Design Guidelines**

🔗 Read the full article at **RotationalMolding.com — Link in Bio!**

#RotationalMolding #Rotomolding #GrangerPlastics #PlasticEngineering #ProductDesign #CustomRotomolding #PlasticManufacturing #DesignForManufacturing #ManufacturingInnovation #RotationalMoldedPlastics

0 0
Good rotomolded parts don’t just need the right material and wall thickness — they need to come out of the mold cleanly. 👀

Draft angles can have a major impact on part release, tooling wear, surface quality and production efficiency.

Too little draft can turn a good design into a manufacturing headache.

We just broke down how draft, mold texture, geometry and polyethylene shrinkage all work together in rotational molding.

🔥 Better design starts before the mold is ever built.

#RotationalMolding #Rotomolding #PlasticDesign #ProductDesign #Manufacturing #Engineering #PlasticManufacturing #CustomRotomolding

2 0
🔥 **SMALL COMPONENTS. BIG ENGINEERING DECISIONS.** 🔥

🔩 Molded-In Threaded Inserts vs. Spin-Weld Fittings ⚙️

When it comes to rotational molding, the smallest design details can have a HUGE impact on product performance.

💪 Strength & Durability
💧 Sealing & Leak Resistance
🔧 Mechanical Connections
⚙️ Design Flexibility
💰 Manufacturing Costs

Two different methods. Two different sets of advantages.

**The right choice isn't always obvious. That's where experience and engineering expertise make the difference.**

At The Granger Plastics Company, we know that successful rotomolding starts long before the mold enters the oven.

🚀 **DON'T JUST MOLD IT. ENGINEER IT.**

🌐 RotationalMolding.com

#RotationalMolding #Rotomolding #PlasticManufacturing #Engineering #ProductDesign #CustomRotomolding #ManufacturingExcellence #GrangerPlastics #MadeInUSA

4 2
Not every large plastic part should be rotomolded.

And not every large plastic part should be thermoformed.

The wrong manufacturing process can cost you in tooling, durability, wall consistency, production efficiency, and product performance.

The right process starts with the part.

Hollow or open?
Seamless or sheet-formed?
Low volume or high volume?
Simple geometry or complex geometry?

That’s where the real decision gets made.

Rotational molding and thermoforming both have their place — but choosing the wrong one can get expensive fast.

#RotationalMolding #Rotomolding #Thermoforming #PlasticManufacturing #Manufacturing #Engineering #ProductDesign #Plastics

1 0
⚙️ ROTATIONAL MOLDING: NOT ALL MACHINES ARE CREATED EQUAL!

Carousel. Shuttle. Rock-and-Roll. Clamshell.

Different rotational molding machines offer different advantages for part size, tooling, manufacturing efficiency, and production flexibility.

At The Granger Plastics Company, understanding the relationship between equipment, materials, tooling, and product design is part of delivering successful custom rotomolding solutions.

📖 Explore our complete guide to rotational molding machines.

🔗 Visit RotationalMolding.com or follow the link in our bio!

#RotationalMolding #Rotomolding #CustomRotomolding #PlasticManufacturing #Manufacturing #MadeInUSA

3 1

Contact Us

Give us a call or fill in the form below and we will contact you. We endeavor to answer all inquiries within 24 hours on business days.
