LD 8 Air Cargo Containers | DQF DQN ULD Containers

LD 8 Air Cargo Containers

ULD Containers, also known as a Unit Load Device, is a regulated pallet or container that is used to load passenger freight, cargo, parcels, mail and more on wide-body aircraft and specific models of narrow-body aircraft. The containers increase and improve operations efficiencies across busy and stressful applications such as airports, package and parcel sort facilities, tarmacs, cargo operations and more.

Granger Aerospace Products has a proven history of manufacturing ULD containers for a number of industry leaders. This experience helped Granger Industries make the decision to launch Granger Aerospace Products. Granger Aerospace now offers lines of LD 2, LD 3 and LD 8 ULD Containers. The LD 2 and LD 8 Air Cargo Containers are built to AS 1677 NAS Specifications, while the LD 3 ULDs are built to the FAA’s TSO C90d certification.

LD 8 Air Cargo Container

Custom LD 8 Air Cargo Container for NFL Team

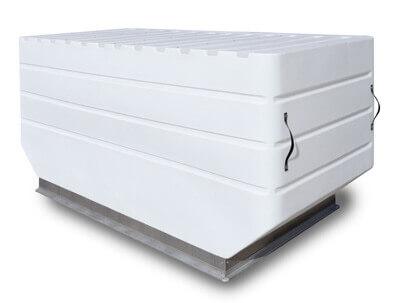

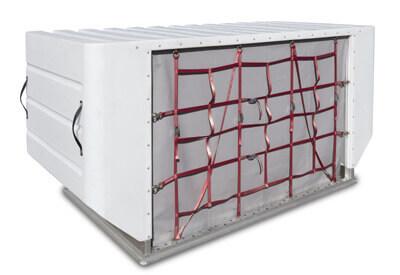

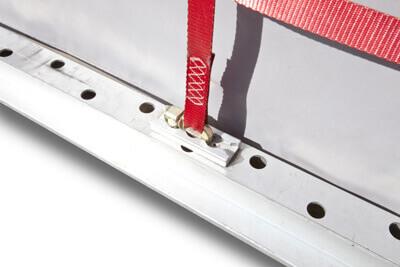

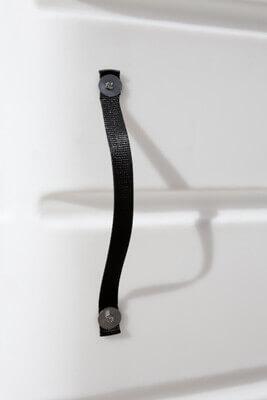

LD 8 DQF Air Cargo Container Photo Gallery

Click any of the LD 8 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 8 DQF Technical Specifications

TSON/A
IATALD-8 / DQF
NAS SpecificationAS 1677
Granger Aerospace P/NGA2-0108-2
Base size2438 mm x 1534 mm96.0 in x 60.4 in
Height1625 mm64 in
Roof Length3175 mm125 in
Max. gross weight2449 kg5400 lb
Internal volume6.9 cu m244 cu. ft
External volume7.5 cu m265 cu ft
Door Opening2254 mm x 1462 mm88.75 in x 57.56 in
Tare weight from 116.6 kg257 lb

LD 8 DQF Dimensional Drawings

Click below to download LD 8 DQF Dimensional PDF

LD 8 Dimensional DQF

LD 8 DQF Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.



LD 8 Air Cargo Container Links



LD 8 DQF / DQN Information



Click below to download LD 8 DQF Technical PDF

LD 8 DQF DQN Information

LD 8 DQN Air Cargo Container Gallery

Click any of the LD 8 Air Cargo Container Images Below for them to open in a larger lightbox gallery.

LD 8 DQN Technical Specifications

TSON/A
IATALD-8 / DQN
NAS SpecificationAS 1677
Granger Aerospace P/NGA2-0108-3
Base size2438 mm x 1534 mm96.0 in x 60.4 in
Height1625 mm64 in
Roof Length3175 mm125 in
Max. gross weight2449 kg5400 lb
Internal volume6.4 cu m224.5 cu. ft
External volume7.5 cu m265 cu ft
Door Opening2254 mm x 1462 mm88.75 in x 57.56 in
Tare weight from169.6 kg374 lb

LD 8 DQN Dimensional Drawings

Click below to download LD 8 DQN Dimensional PDF

LD 8 DQN Dimensions

LD 8 DQN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

LD 8 Air Cargo Container Links

LD 8 DQF / DQN Information

Click below to download LD 8 DQN Technical PDF

LD 8 DQF DQN Information
