LD 2 Air Cargo Containers
LD 2 Containers are an necessary component of the airline, small parcel and aerospace industries. Often referred to by their IATA ULD Codes of DPE and DPN, the LD 2 Air cargo containers are half-width lower hold containers that feature one angled side. LD 2 ULD Containers are suitable for use on a variety of wide-body Boeing aircraft including 747’s, 767’s, 777’s and 787 lower holds. Learn more about other air cargo containers by Granger Aerospace by Clicking Here!
LD 2 DPE Air Cargo Container Gallery
Click any of the LD 2 DPN Air Cargo Container Images Below for them to open in a larger lightbox gallery.
![ld2dpe1 LD 2 DPE Air Cargo Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe1-215x215.jpg)
![ld2dpe6 ld2dpe6](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe6-215x215.jpg)
![ld2dpe4 LD 2 DPE Air Cargo Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe4-215x215.jpg)
![ld2dpedimensions Interior of LD 2 DPE Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpedimensions-215x215.jpg)
![ld2dpe8 LD 2 DPE Container Buckle](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe8-215x215.jpg)
![ld2dpe3 LD 2 Air Cargo Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe3-215x215.jpg)
![ld2dpe5 LD 2 DPE Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe5-215x215.jpg)
![ld2dpe7 Curtain closing to seat track](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe7-215x215.jpg)
![ld2dpe2 LD 2 Air Cargo Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpe2-215x215.jpg)
LD 2 DPE Technical Specifications
TSO | N/A | |
IATA | LD-2 / DPE | |
NAS Specification | AS 1677 | |
Granger Aerospace P/N | GA2-0102-2 | |
Base size | 1534 mm x 1562 mm | 60.4 in x 61.5 in |
Height | 1625 mm | 64 in |
Roof Length | 1562 mm | 61.5 in |
Max. gross weight | 1224 kg | 2700 lb |
Internal volume | 3.5 cu m | 123 cu ft |
External volume | 3.65 cu m | 129 cu ft |
Door Opening | 1010 mm x 1480 mm | 39.75 in. x 58.27 in |
Tare weight from | 72.1 kg | 159 lb |
LD 2 DPE Dimensional Drawings
LD 2 DPE Features
-
- Granger Aerospace Products Air Cargo Containers are the only cargo containers manufactured from a combination of aluminum and durable LLDPE.
- The LD-2 Body is weld-able.
- The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
- Granger Aerospace Products cargo containers are robust.
- No aluminum body panels to patch.
- No aluminum body frames to replace.
- Lighter weight, less down time and lower repair costs equals lower cost of ownership.
- Enhanced Threshold.
- Fewer fasteners to replace.
- Unique design allows for faster repairs.
- Less spare parts to keep in stock.
- Granger Aerospace Products offers alternative solutions for your ULD needs.
- It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
- It’s our goal to offer more choices to our customers.
- Through or focus on technology and research, we are continually making improvements to our design.
- Our customers save fuel by using robust as well as cost-efficient lightweight containers.
LD 2 DPE Air Cargo Container Links
LD 2 DPE Information
Click below to download LD 2 DPE Technical PDF
LD 2 DPN Air Cargo Container Gallery
Click any of the LD 2 DPN Air Cargo Container Images Below for them to open in a larger lightbox gallery.

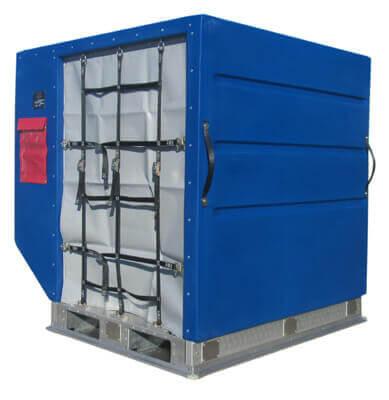

![ld2dpn1 ld2dpn1](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn1-215x215.jpg)

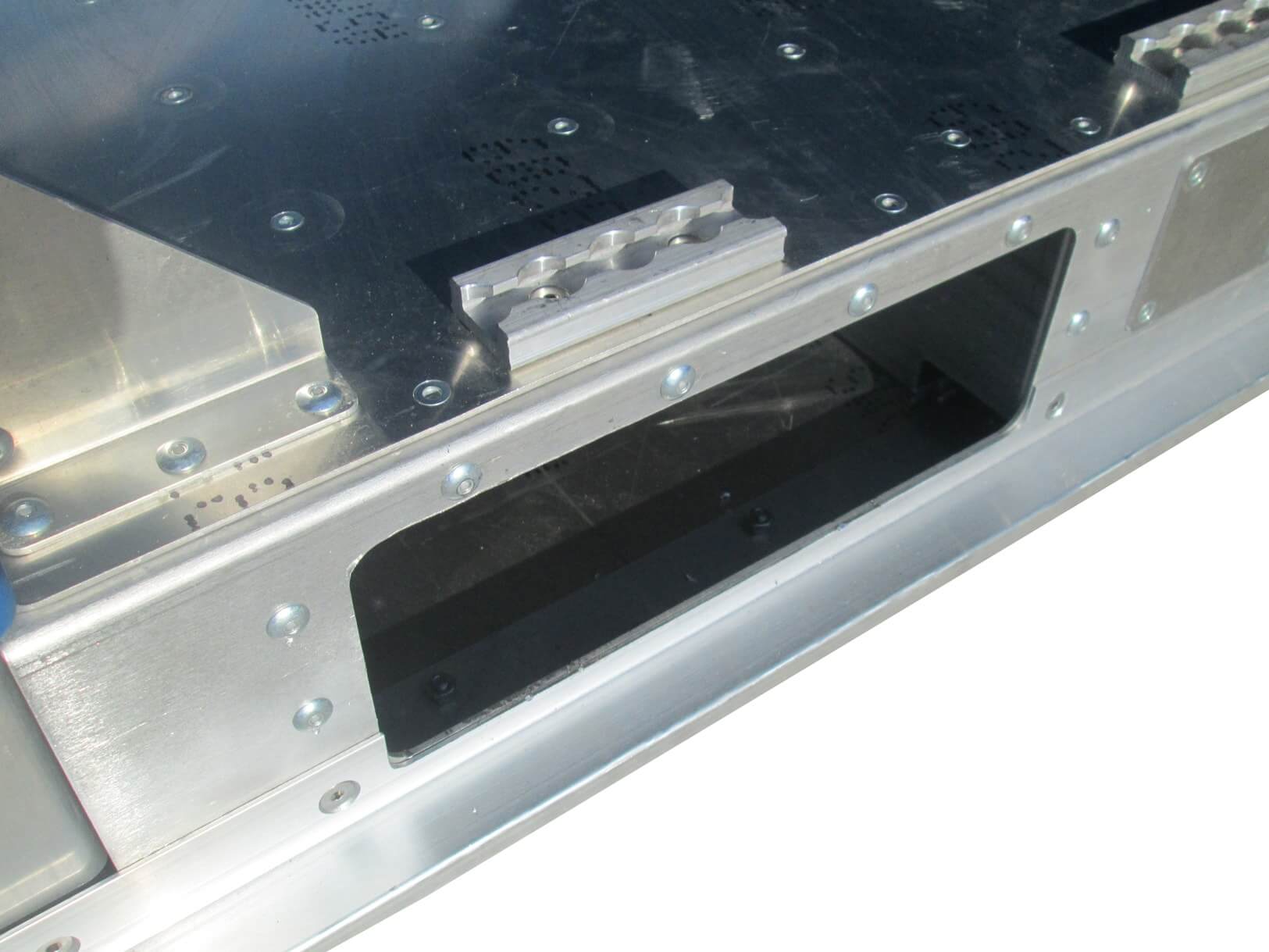

![ld2dpn22 LD 2 DPN Base Fork Pocket](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn22-215x215.jpg)

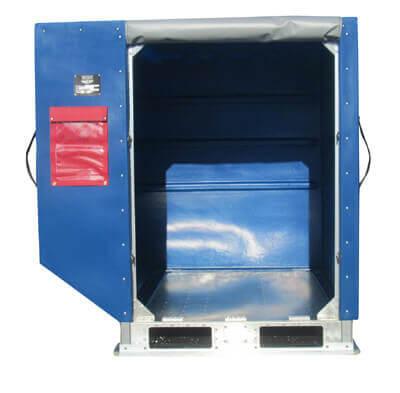

![ld2dpn2 LD 2 DPN Air Cargo Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn2-215x215.jpg)

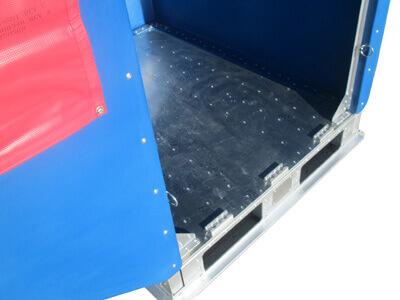

![ld2dpn3 Inside of LD 2 DPN ULD Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn3-215x215.jpg)

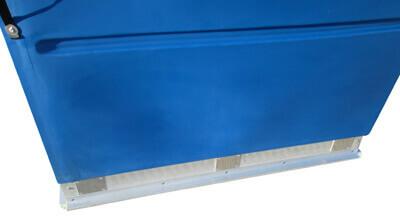

![ld2dpn4 LD 2 DPN Base](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn4-215x215.jpg)

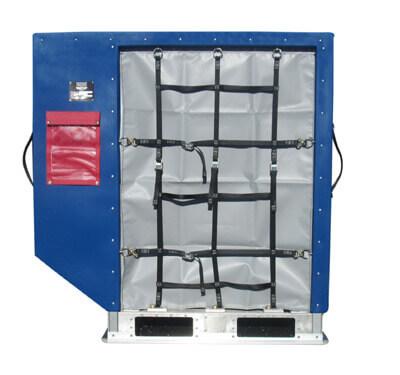

![ld2dpn5 LD 2 DPN Container](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn5-215x215.jpg)

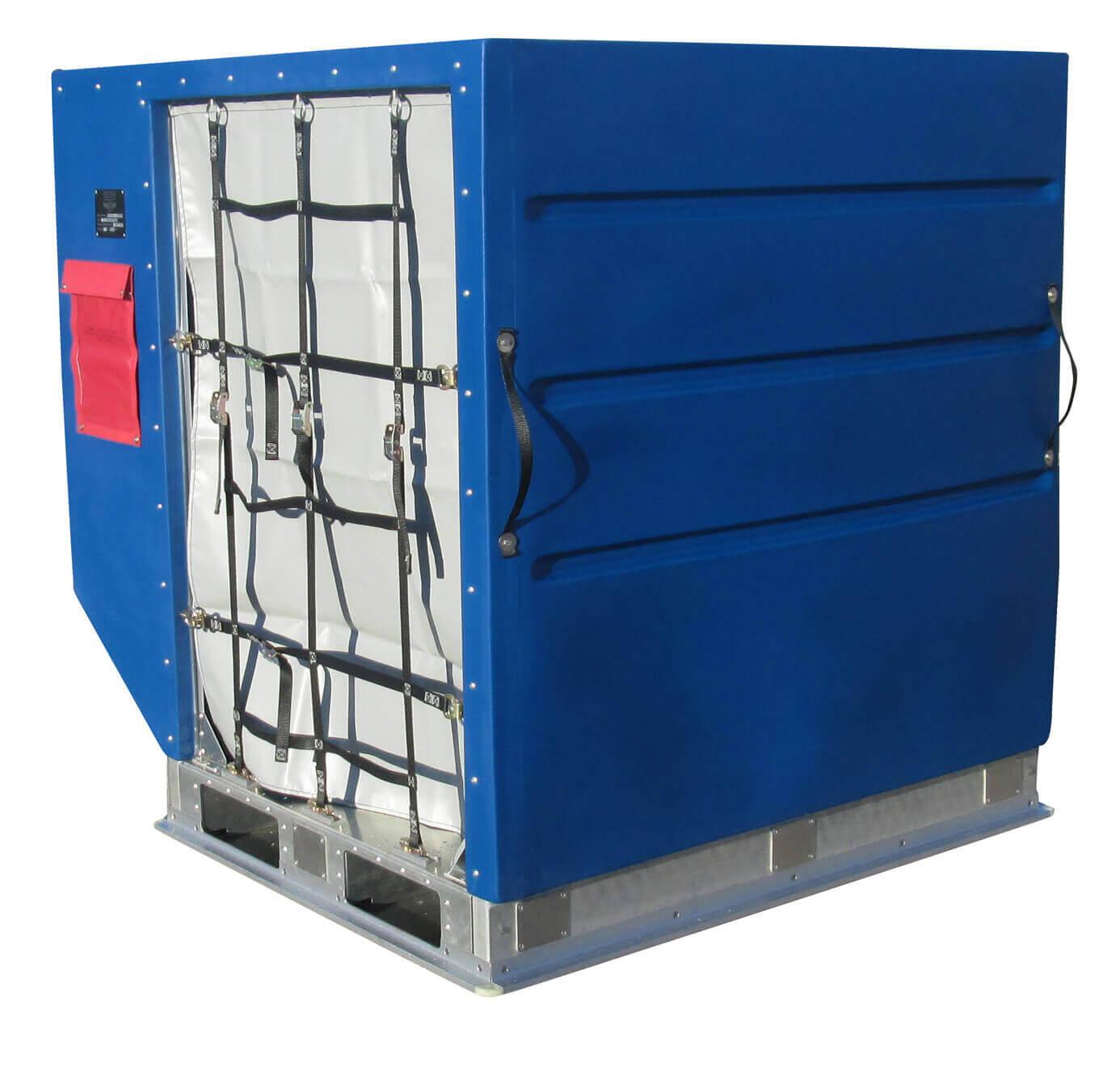

![ld2dpn9 LD 2 DPN](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn9-215x215.jpg)

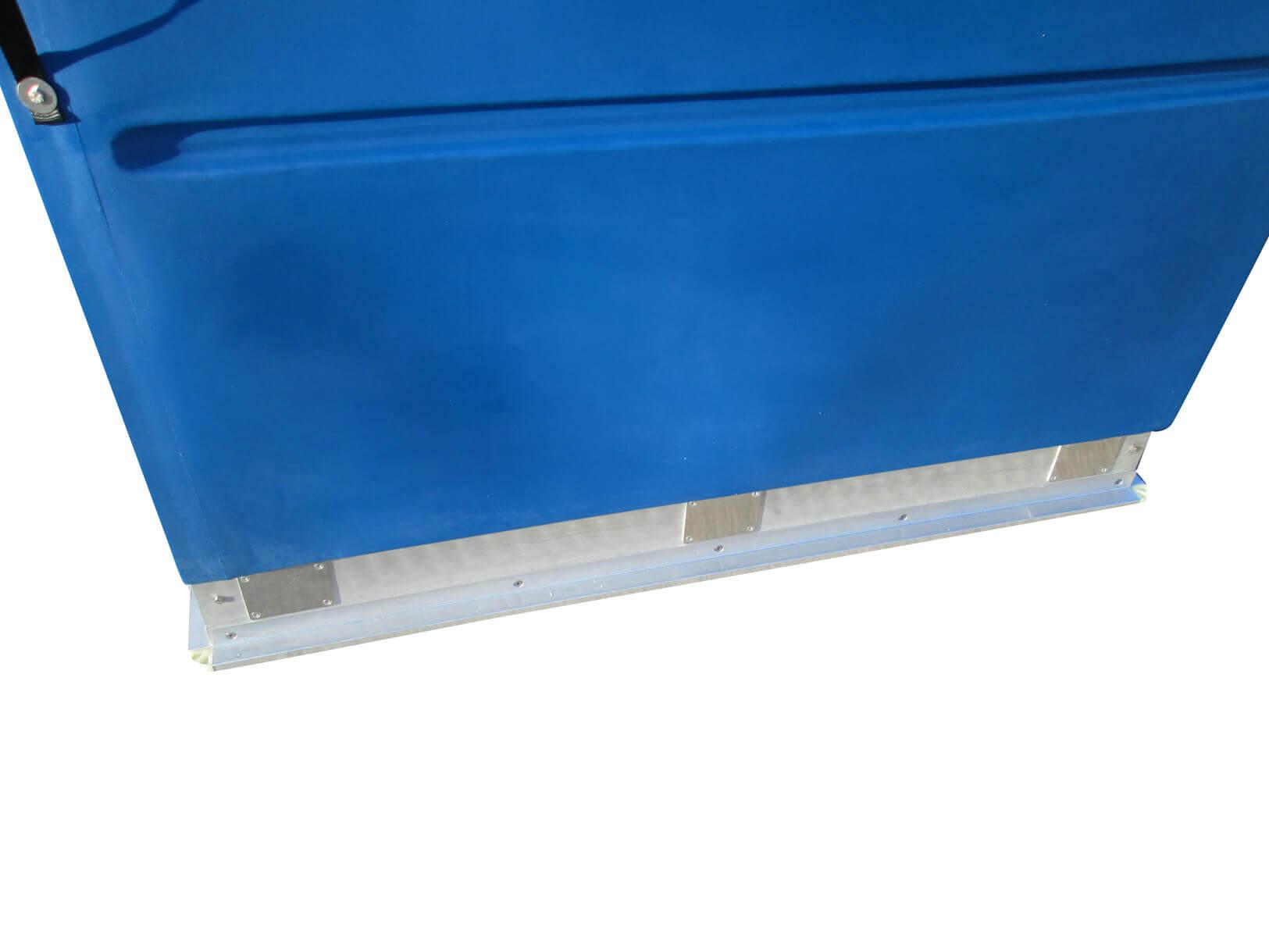

![ld2dpn7 LD 2 DPN Base](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn7-215x215.jpg)

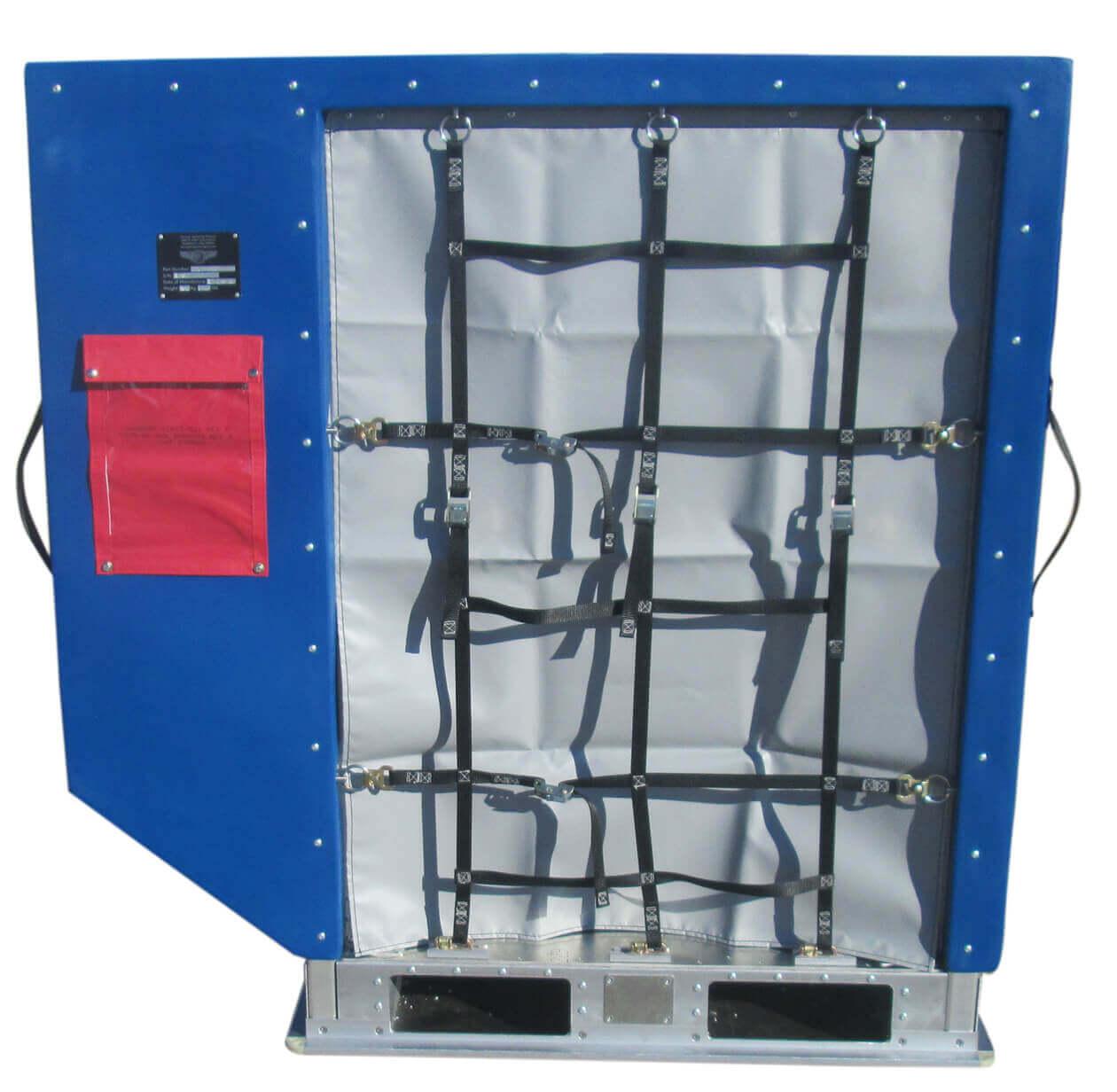

![ld2dpn14 LD 2 DPN](https://www.grangerplastics.com/wp-content/uploads/2022/08/ld2dpn14-215x215.jpg)
LD 2 DPN Technical Specifications
TSO | N/A | |
IATA | LD-2 / DPN | |
NAS Specification | AS 1677 | |
Granger Aerospace P/N | GA2-0102-3 | |
Base size | 1534 mm x 1562 mm | 60.4 in x 61.5 in |
Height | 1625 mm | 64 in |
Roof Length | 1562 mm | 61.5 in |
Max. gross weight | 1224 kg | 2700 lb |
Internal volume | 3.2 cu m | 114 cu ft |
External volume | 3.65 cu m | 129 cu ft |
Door Opening | 1010 mm x 1480 mm | 39.75 in. x 58.27 in |
Tare weight from | 72.1 kg | 230 lb |
LD 2 DPN Dimensional Drawings
LD 2 DPN Features
- Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
- The LD-2 Body is weld-able
- The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
- Granger Aerospace Products cargo containers are robust.
- No aluminum body panels to patch.
- No aluminum body frames to replace.
- Lighter weight, less down time and lower repair costs equals lower cost of ownership.
- Enhanced Threshold.
- Fewer fasteners to replace.
- Unique design allows for faster repairs.
- Less spare parts to keep in stock.
- Granger Aerospace Products offers alternative solutions for your ULD needs.
- It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
- It’s our goal to offer more choices to our customers
- Through or focus on technology and research, we are continually making improvements to our design.
- Our customers save fuel by using robust as well as cost-efficient lightweight containers.
LD 2 Air Cargo Container Links
- LD 2 Containers
- Granger Aerospace LD 2 Air Cargo Containers
- LD 2 Air Cargo Containers
- Rotomolded LD 2 Air Cargo Containers
LD 2 DPN Information
Click below to download LD 2 DPN Technical PDF
